Want to know the fastest way to waste money on a food truck? Design it wrong the first time. I’ve watched it happen more times than I can count.
Quick answer: Food truck design covers two things — your interior layout and your exterior branding. Most owners spend between $50,000 and $130,000 on a full buildout, and a bad layout is the single most expensive mistake to fix after the fact. Get the interior right first. Then make it look good.
📚 Part of our complete Food Truck Equipment Guide.
I’ve built out two trucks from bare shells. I’ve helped other owners troubleshoot food truck designs that were not working. The problems are almost always the same — equipment in the wrong spot, no room to move, ventilation as an afterthought.
This guide covers every part of the food truck design process. Dimensions, layout types, interior zones, exterior branding, and what it actually costs. No fluff. No theory. Just what works.
Know Your Truck Dimensions Before You Touch Anything Else
The most common food truck sizes are 14 feet, 16 feet, 20 feet, and 22 to 24 feet long. Interiors run roughly 7 to 8 feet wide and 6 to 7 feet of ceiling height. Every food truck design decision starts with these numbers.
A 14-footer works for simple menus. Think coffee, shaved ice, or grilled cheese. You will fit a couple of appliances and a small prep area. That is it.
A 16-footer gives you breathing room for a two-person crew and a short-order menu. Most full-service food trucks run 20 to 24 feet. That is where you fit a full cooking line, separate prep station, and decent storage.
Width matters just as much as length. After you account for equipment depth on both sides, your aisle drops to about 3 feet. Sometimes less. I use cardboard cutouts sized to the footprint of each appliance. Takes an hour. Saves thousands.
Height is your hidden advantage. Standard ceiling height runs 6 to 7 feet. Overhead shelving, wall-mounted spice racks, and magnetic knife strips all free up counter space without eating into your aisle.
Do not forget wheel wells, the generator compartment, and the serving window cutout. These are fixed obstacles. Your layout has to work around them.
📎 Related: Still deciding between a truck and a trailer? See our guide on food truck vs food trailer.
Pick the Right Food Truck Design Layout for Your Menu
There is no single “best” food truck layout. The right one depends on your menu, your crew size, and your truck dimensions. Here are the five I see most often.

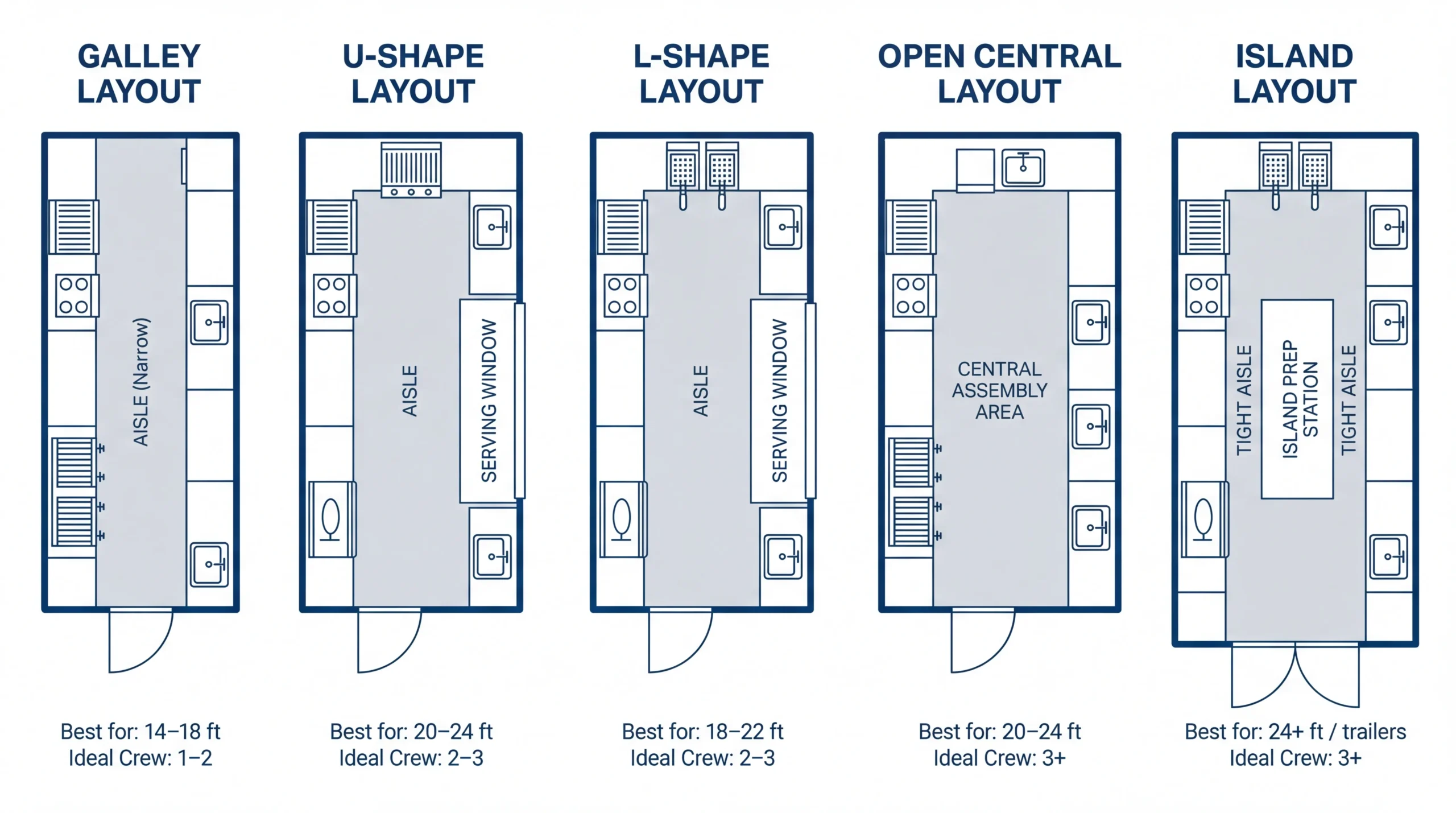

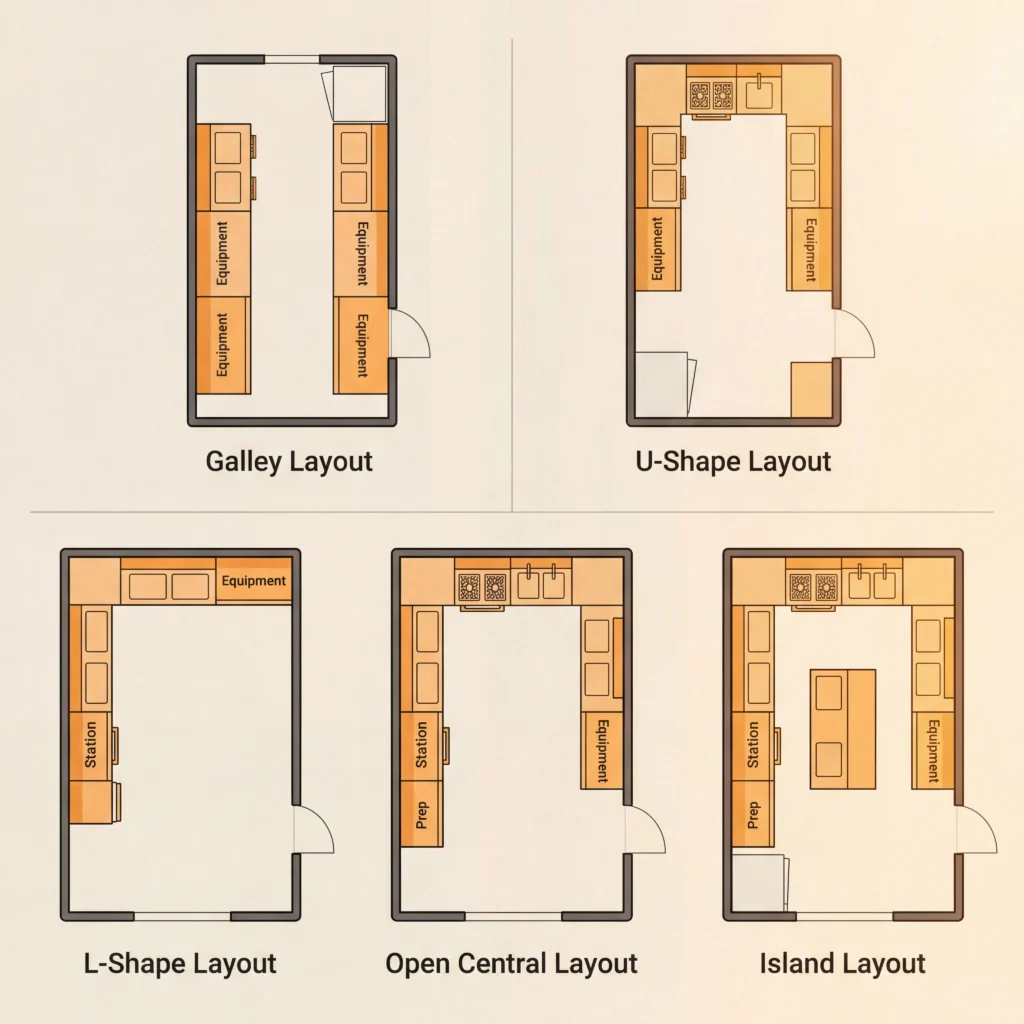

The Galley Layout runs equipment along both walls. Narrow aisle down the center. Standard workhorse for trucks under 18 feet. Keeps everything within arm’s reach. Downside — two people cannot pass each other.
The U-Shape Layout wraps equipment and counters around three walls. Open side faces the serving window. This is my go-to for trucks 20 feet and up. Distinct cooking, prep, and serving zones. Handles three-person crews well.
The L-Shape Layout puts your cooking line along one wall and storage on the adjacent wall. Works when you need to separate hot cooking from cold prep. Common in trucks that do heavy grill or fryer work.
The Open Central Layout pushes all equipment to the perimeter. Leaves a clear center area. Assembly-line setup — one person preps, another cooks, another plates. Works best in wider trucks or trailers.
The Island Layout puts a prep station in the center. Rarely practical in standard trucks because the aisle gets too tight. Works in larger trailers with 8-plus feet of interior width.
| Layout Type | Best Truck Size | Ideal Crew | Best For | Watch Out For |
|---|---|---|---|---|
| Galley | 14–18 ft | 1–2 | Simple menus, solo operators | Impossible to pass with 2+ crew |
| U-Shape | 20–24 ft | 2–3 | Full menus, multi-station | Serving window can bottleneck |
| L-Shape | 18–22 ft | 2–3 | Grill/fryer-heavy concepts | Dead corner if not planned |
| Open Central | 20–24 ft | 3+ | High-volume assembly line | Needs wide interior to work |
| Island | 24+ ft / trailers | 3+ | Large-format operations | Tight aisles around island |
📎 Related: For a deeper dive into optimizing your truck’s interior arrangement, see our food truck layout guide.
Set Up Your Interior Zones the Right Way
Your food truck design falls apart if the interior zones overlap. When zones get scrambled, you lose speed and your crew gets in each other’s way. Here is the order I set them up.
- Cooking zone. Your grill, fryer, range, or oven. This goes directly under the exhaust hood. That is a code requirement, not a suggestion.
- Prep zone. Cutting boards, prep tables, countertop space. Sits adjacent to cooking. Ingredients move from prep to heat in one step. No crossing the aisle.
- Cold storage. Your refrigerator and freezer go near the prep zone. Undercounter units save the most space.
- Serving zone. The area around your serving window. Finished plates go out here. Your POS system lives here. Keep it separate from cooking.
- Cleaning zone. Your three-compartment sink and handwashing station. Health departments require specific setups. Place these where they do not block the cooking-to-serving flow.
- Storage zone. Dry goods, supplies, disposables. Overhead shelving and under-counter cabinets.
The principle is simple. Ingredients move in one direction through the truck — from storage to prep to cooking to serving window. If your crew backtracks or crosses paths to get food out, your zones are wrong.
⚠️ Warning: Every jurisdiction has different requirements for sink placement, handwashing stations, and food storage separation. Bring your zone plan to your local health department before you build anything. What passes in one county fails in the next.
Match Your Food Truck Design to Your Cuisine
Here is where most people mess up. A pizza truck and a taco truck need completely different equipment. That means completely different layouts. I see more wasted money here than anywhere else.

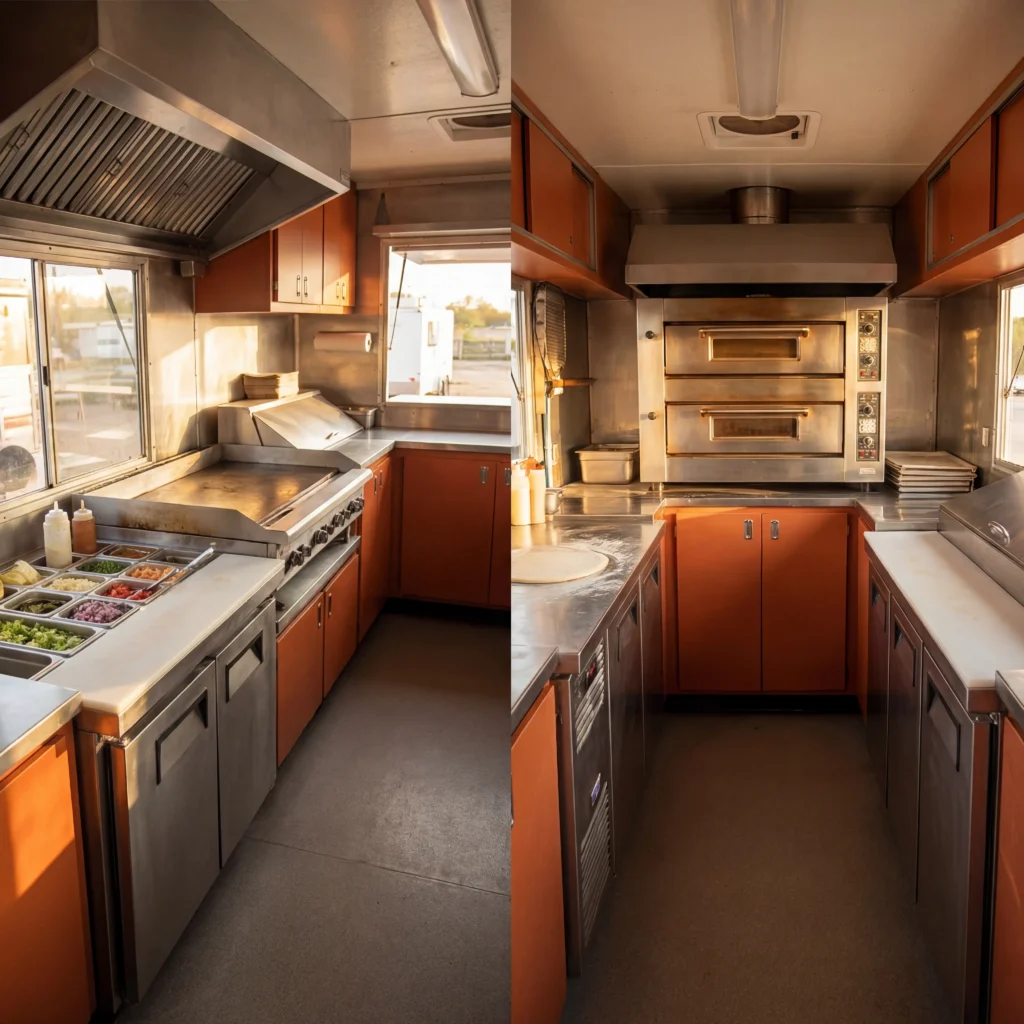

Taco and Mexican concepts. Flat-top griddle or plancha. Steam table for proteins. Cold prep station for toppings. The L-shape works well. Griddle and fryer on one wall. Cold prep on the adjacent wall. Customers expect speed. Keep the assembly line tight. Most taco trucks run 16 to 20 feet.
Pizza trucks. Everything revolves around the oven. Conveyor or wood-fired deck oven — either way, it dominates. Generates serious heat. Put it near the exhaust hood. You need a dedicated dough prep area. Enough counter space to stretch dough. Cold storage for cheese and toppings. U-shape works best. Plan for 20-plus feet.
BBQ trucks. Smoker or large grill plus holding and warming equipment. Smokers are heavy. Lots of heat and smoke. Place near the rear with direct ventilation access. You will need more propane capacity than other concepts. Plan for 22-plus feet.
Coffee trucks. Most space-efficient concept. Espresso machine, grinder, blender, undercounter fridge for milk, small pastry display. Galley layout in a 14-footer handles this. Main challenge is water. Coffee uses a surprising amount. Plan your water tank accordingly.
Burger trucks. Flat-top griddle, fryer for fries, cold prep for toppings, bun toasting station. Galley or L-shape in 18 to 20 feet.
Bottom line: decide your menu first. List every piece of equipment. Then pick the layout. Not the other way around.
Get Your Ventilation and Hood System Right
Ventilation is the most underestimated part of food truck design. Skip this and you will fail your health inspection before you serve a single customer.
Any equipment that produces heat, smoke, grease, or steam needs to sit under a commercial exhaust hood. Griddles, fryers, ranges, ovens, charbroilers — all of them. Your hood system needs to be rated for the BTU output of the equipment beneath it.
Undersized hoods do not pull enough air. That means grease buildup, poor air quality, and fire risk. I have rebuilt hood systems on trucks where the original builder cut corners. It is not cheap to fix after the fact. Spec it right the first time. Trust me on this one.
Most jurisdictions require a fire suppression system integrated into your hood. Typically an Ansul or similar wet chemical system. Not optional. Budget for it from day one. A hood and suppression system for a food truck typically runs between $2,000 and $6,000.
Makeup air is the other half. Your exhaust hood pulls air out. That air has to be replaced. Without adequate makeup air, your truck creates negative pressure. The serving window becomes a wind tunnel. Doors will not close properly. Burners may not get enough oxygen.
⚠️ Warning: Ventilation codes vary significantly by jurisdiction. Before you finalize your hood system, bring your plans to your local fire marshal and health department. Requirements that pass in one county may fail in the next. Always verify locally.
📎 Related: For fire suppression specifics, see our fire suppression system guide.
Design Your Exterior with Food Truck Design Ideas That Actually Work
Now for the important part that everyone wants to rush to. Once your interior layout is locked down, it is time for the food truck design ideas that make people stop and look.
I went with a full vinyl wrap on both my trucks. First time I handled the design myself. Second time I hired a professional. The difference was obvious. Here is what I learned.
Vinyl wrap vs paint. A full wrap runs roughly $2,500 to $5,000 for a standard 20-foot truck. Wraps last 3 to 5 years before fading. They can be replaced or updated without repainting the whole truck. Major advantage if your branding evolves. Professional paint with detailed artwork costs about the same or more. Paint lasts longer but is harder to modify. If your branding is likely to change in the first couple years, go with wrap.
Make your name and cuisine readable from 50 feet away. Bold, high-contrast fonts. If someone across a parking lot cannot tell what you sell, your food truck design is not working. This is the most common mistake I see. Owners prioritize artistic murals over clear signage. Specifically, your truck name and food type should be the two largest elements on the exterior.
Use high-contrast colors. Complementary pairs — yellow and purple, blue and orange — create the strongest visual pop. Avoid white, gray, and beige. You will look like a delivery van.
Put your logo on every side. People approach from all angles. Your truck is a rolling billboard even when parked.
Include food photography or illustrations of your dishes. People eat with their eyes. Showing what you serve converts walkers to customers faster than any tagline.
Make sure your design files are in vector format — .ai or .eps files. Your printer needs CMYK color mode, not RGB. If your designer does not know the difference, find a different designer.
📎 Related: For wrap-specific guidance, see our food truck wrap guide.
Avoid These Food Truck Design Mistakes
Look — I have seen every one of these. Most of them cost real money to fix.
Designing around equipment you already own. Just because you got a deal on a six-burner range does not mean your 16-foot truck can handle it. Start with your menu. Determine the right equipment. Then build the layout.
Ignoring the aisle. Your aisle needs to be at least 30 inches wide for one person to work safely. Two people? You need 36 inches minimum. I have been in trucks where two cooks literally cannot pass each other. Productivity killer. Safety hazard. Check your local health code for the exact requirement in your jurisdiction.
⚠️ Warning: Aisle width minimums vary by jurisdiction. The 30-inch figure is a common baseline, but your local health department may require more. Verify before you build.
Skipping the health department consultation. Before you finalize any layout, bring your food truck design plan to your local health department. They have specific requirements for sink placement, handwashing stations, and food storage. Finding out your layout does not comply after it is built means ripping things out.
Underestimating power needs. Every piece of equipment draws power. Add up the total wattage. Size your generator to handle peak load with headroom. I have been on trucks where running the fryer and the AC at the same time trips the breaker.
Not testing the workflow. Your food truck design might look great on paper. It falls apart during a 200-customer lunch rush. Do a mock service run before your buildout is finalized. Walk through a full order — pull, prep, cook, plate, serve. Time it. Every unnecessary step adds seconds that compound.
Use These Tools to Plan Your Food Truck Design
The fix is simple: you do not need to be an architect. Several tools make food truck design planning accessible.
SketchUp has a free version. Most popular choice for 3D visualization. I used it for my second truck. The 3D model caught a clearance problem between the hood and an overhead shelf that I would have missed on paper. Moderate learning curve. Food-truck-specific tutorials exist online.
AutoCAD is the professional standard. If you hire a fabricator, they will likely want AutoCAD files. Overkill for DIY planning. Worth it for a custom build.
OnShape is free and browser-based. No software installation. Handles 3D modeling well enough for layout planning. Popular in food truck forums.
MagicPlan is a mobile app. Point your phone around the inside of your empty truck. It generates a basic floor plan you can modify. Useful for quick dimensions without a tape measure.
For a ready-made food truck design template, SketchUp and OnShape both offer pre-built starting configurations you can modify to fit your truck’s exact dimensions.
Graph paper still works. Use a 1-inch equals 1-foot scale. Draw your truck interior. Cut out paper rectangles for each piece of equipment. Move them around until the flow makes sense. Low-tech. Effective.
📎 Related: For help choosing specific equipment to place in your layout, see our food truck equipment checklist.
Budget for Your Food Truck Design — Line by Line
Moving on — design costs vary widely. Most online estimates lump everything into one number. That is not helpful. Here is what each component actually costs.
These ranges reflect what I have seen owners pay and what I have spent on my own builds. Your market, your equipment choices, and your build complexity will shift these numbers. Get at least 3 quotes before committing to anything.

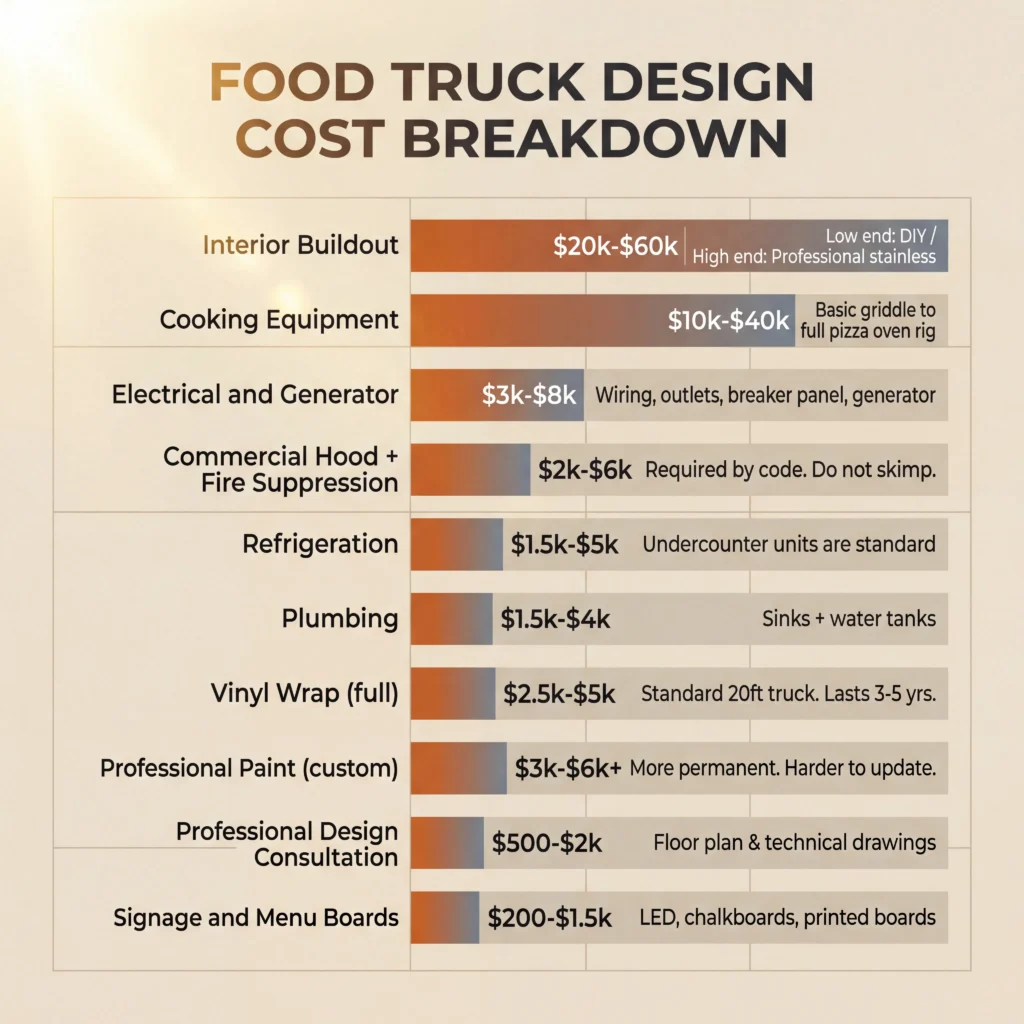

| Design Component | Typical Cost Range | Notes |
|---|---|---|
| Interior buildout (labor + materials) | $20,000–$60,000 | Low end = DIY galley with basic materials. High end = professional U-shape with stainless throughout |
| Commercial exhaust hood + fire suppression | $2,000–$6,000 | Required by code. Do not skimp. |
| Cooking equipment (total) | $10,000–$40,000 | Basic griddle setup to full pizza oven rig |
| Refrigeration | $1,500–$5,000 | Undercounter units are standard for most trucks |
| Plumbing (sinks + water system) | $1,500–$4,000 | Three-compartment sink + handwash + water tanks |
| Electrical and generator | $3,000–$8,000 | Wiring, outlets, breaker panel, generator unit |
| Vinyl wrap (full) | $2,500–$5,000 | Standard 20-foot truck. Lasts 3-5 years. |
| Professional paint (custom) | $3,000–$6,000+ | More permanent. Harder to update. |
| Signage and menu boards | $200–$1,500 | LED signs, chalkboards, or printed boards |
| Professional design consultation | $500–$2,000 | Floor plan design and technical drawings |
Total buildout for a fully equipped food truck typically lands between $50,000 and $130,000. That range depends on whether you start with a bare truck or a partially equipped vehicle, and how much labor you do yourself.
The biggest money saver I have found is doing your own layout planning and handling installation where you are comfortable. I saved roughly $15,000 on my second truck by doing interior framing, shelving, and non-gas equipment installation myself.
⚠️ Warning: Do not cut costs on gas line installation, electrical panel work, or hood system installation. These must be done by licensed professionals. That is not where you save money. That is where you avoid fires and failed inspections.
📎 Related: For financing options to cover buildout costs, see our food truck loans guide.
Frequently Asked Questions
How much does it cost to design a food truck?
The design phase alone — layout planning and technical drawings — typically costs $500 to $2,000 if you hire a professional. Total buildout including design, equipment, interior construction, wrap, and electrical runs $50,000 to $130,000 for a custom build. Pre-built trucks from manufacturers start around $100,000 and go up from there. Always get multiple quotes for your specific concept and market.
What is the best layout for a food truck?
The U-shape layout works best for most full-service food trucks in the 20-to-24-foot range. It creates distinct cooking, prep, and serving zones while keeping everything within arm’s reach. For smaller trucks under 18 feet or single-operator setups, the galley layout is more practical. The right choice depends on your menu and crew size.
What size food truck is best for beginners?
Most first-time owners do well with 16 to 20 feet. A 16-footer handles simple menus with one to two people. A 20-footer gives room for a full cooking line and separate prep. Going smaller than 14 feet limits your menu significantly. Going larger than 22 feet adds cost and makes parking harder.
Can I design my food truck layout myself?
Yes. Tools like SketchUp, OnShape, and even graph paper let you plan a workable layout without hiring a designer. Measure your interior accurately. List every piece of equipment with its footprint. Walk through a mock order to test the workflow. Bring your plan to the local health department for review before building.
How long does a food truck buildout take?
A professional buildout typically takes one to three months. DIY buildouts often run three to six months part-time. Custom-order trucks from manufacturers can take two to four months from deposit to delivery. Plan your timeline before committing to a launch date.
Wrapping Up
Food truck design comes down to three things. Measure your space. Plan your workflow. Then make it look good. In that order.
Here is the short version:
- Measure your truck interior before buying a single piece of equipment
- Choose a layout type that matches your menu and crew size
- Set up interior zones so ingredients flow one direction — storage to prep to cooking to window
- Budget for ventilation, fire suppression, and electrical as non-negotiable items
- Design your exterior for readability first, aesthetics second
Your Next Steps:
- Food Truck Equipment Checklist — for the complete list of what goes in your truck
- Food Truck Layout — for deeper layout optimization strategies
- Food Truck Interior — for detailed interior finishing guidance
Back to the big picture: Food Truck Equipment Guide.
— Darnell Kowalski
