Food Truck Window Guide: Complete Installation & Sizing Essentials

Introduction

Your food truck window breaks down mid-service. The sliding panel jams. Customers wait. You’re losing money by the minute.

I’ve rebuilt, replaced, and installed over 40 food truck windows in eight years—first as an equipment tech, now running my own BBQ truck operation in Chicago. The food truck window you choose affects everything from health inspection pass rates to how many customers you can serve per hour.

Most operators pick windows based on price alone. That’s a mistake. The wrong window size costs you customers. The wrong material fails health inspections. Poor installation creates water leaks that damage your entire truck.

This guide covers what I learned installing windows in trucks across Cook County, plus the mistakes I made on my own first build. You’ll understand window types, sizing requirements, installation steps, and health code compliance—without the sales pitch from manufacturers trying to upsell you.

Quick Answer: Food truck windows (also called concession windows or serving windows) are aluminum-framed service openings with sliding or awning-style panels. Standard sizes range from 24″×24″ to 60″×36″. Most operators need windows with self-closing insect screens to meet health department requirements. Expect to pay $400-$1,800 depending on size, features, and customization.

What Makes a Good Food Truck Service Window

A good food truck window does three things: serves customers efficiently, meets health codes, and survives daily abuse.

I’ve seen $600 windows outlast $1,200 models because the cheap one had better construction where it mattered. Here’s what actually determines window quality.

Frame material matters most. Aluminum frames are standard for good reason—they’re lightweight, rust-resistant, and strong enough for 750,000+ opening cycles. I’ve tested steel frames that rusted through in 18 months from humidity and cleaning spray. Aluminum lasts.

Glass thickness affects longevity. Most food truck windows use 1/8″ or 1/4″ tempered glass. The 1/8″ saves weight but cracks easier during installation. I cracked two panels installing my first window—learned that lesson fast. Spring for 1/4″ tempered if you’re doing installation yourself.

Operating system determines daily frustration level. Smooth gliding tracks mounted in the header (top) beat sill-mounted systems every time. Track-free sills are easier to clean and don’t collect grease. Our windows open with two fingers after 6 years because we chose nylon slider bars on slotted rails.

Screen type determines health inspection outcomes. Self-closing insect screens are required in most states for food service. Self-storing screens (manual open/close) don’t meet code in places like California or Illinois. Verify your local requirements before ordering.

The window that works for a coffee truck (smaller, vertical split) won’t work for a BBQ operation (larger, horizontal slider for passing full plates). Size and configuration depend on your service style, not just your budget.

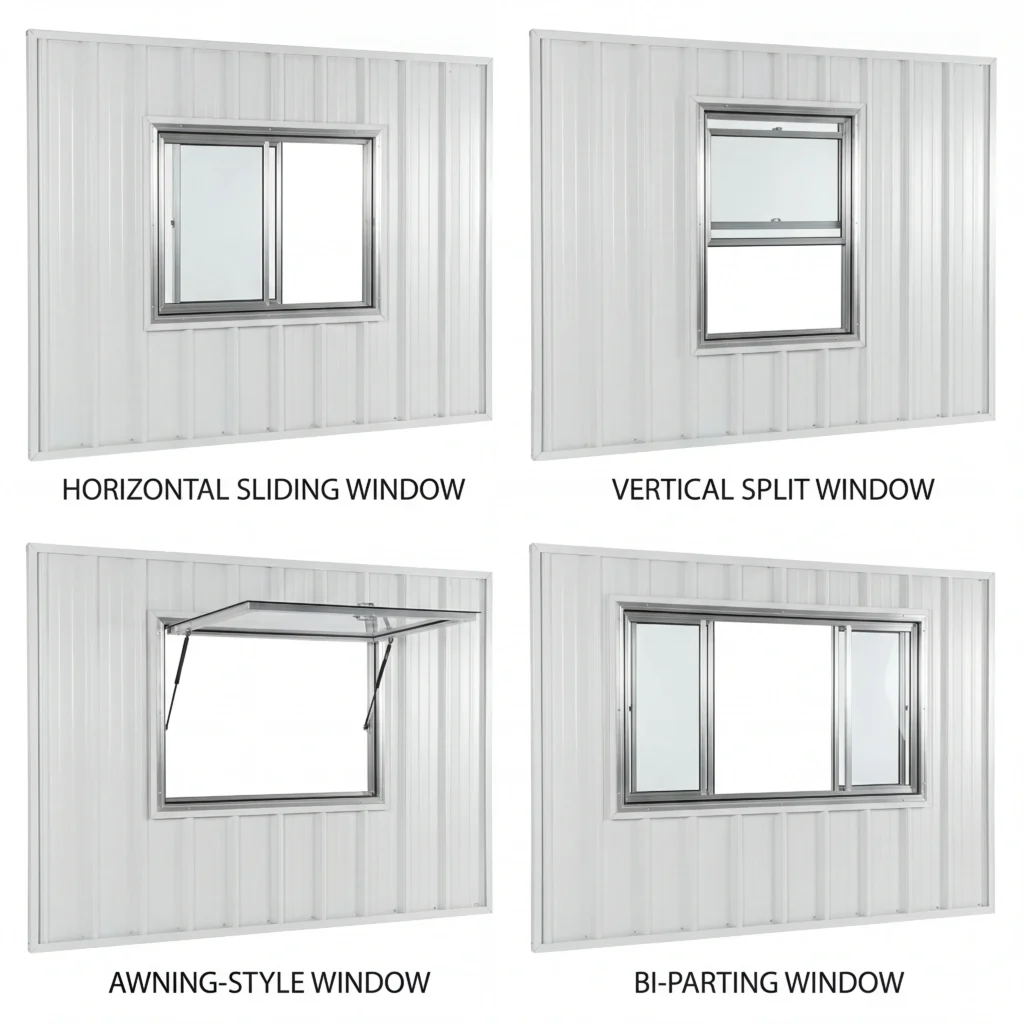

Food Truck Window Types Explained

Four main window types dominate the food truck market. Each works better for specific service styles.

Horizontal Sliding Windows

Single-panel sliders move left or right along a track. These are what 70% of food trucks use because they’re simple and reliable.

I use a 48″×36″ horizontal slider on our main serving side. One hand opens it, customers see the full kitchen, and we can pass large trays of ribs without tilting them sideways. The wide opening speed matters during lunch rushes.

Best for: Full-service food trucks, BBQ operations, any business serving large plates or multiple items per order.

Vertical Split Windows

Two panels slide vertically—bottom panel opens up, top stays closed. These create a smaller opening that’s easier to secure but limits what you can pass through.

Best for: Coffee trucks, ice cream vendors, operations serving single items (cups, cones, wrapped sandwiches).

Awning-Style Windows

The entire window panel lifts up like an awning, held open by gas struts or hydraulic arms. This creates overhead weather protection and maximum opening size.

We added an awning window on our second truck for outdoor events. The overhead shade protects customers from sun and rain, which matters at farmers markets where people stand in line outside. Installation’s more complex because you need proper strut mounting.

Best for: Outdoor events, farmers markets, locations without covered customer areas.

Bi-Parting Windows

Two panels slide away from center in opposite directions, creating a wide opening. These work for high-volume service but cost more and have twice the failure points.

Best for: Large operations, catering trucks, multi-person service teams.

Comparison Table

How to Measure Your Food Truck for Window Installation

Measuring wrong costs money. I’ve fixed three installations where operators ordered windows that didn’t fit their wall depth.

Here’s the exact measuring process I use before ordering any food truck window.

Step 1: Measure your wall thickness. Food truck walls range from 1.5″ to 3″ thick depending on insulation. Measure at the exact location where you’ll install the window. Write this number down—you’ll need it when ordering.

Most window manufacturers offer windows for 1.5″, 2″, or 2.5″ walls. If your wall is 2.25″ thick, round up to the next size (2.5″ window).

Step 2: Determine rough opening dimensions. The rough opening is the hole you’ll cut in your truck wall. Add 1/2″ to your desired window size for clearance. A 36″×24″ window needs a 36.5″×24.5″ rough opening.

Mark the opening location at comfortable serving height—typically 42″-48″ from floor to bottom edge. We set ours at 45″ after testing with our shortest employee. Too high exhausts your arms during long shifts.

Step 3: Check for interior obstacles. Open your truck. Look inside where the window will go. Electrical conduit, shelving brackets, or plumbing lines that interfere with your planned opening need to move first. I once had to reroute propane lines because I didn’t check interior clearance before marking the cut.

Step 4: Verify exterior clearance. Some windows need 2″-3″ of clearance above the opening for mounting brackets or awning mechanisms. Check your truck’s exterior panel joints and seams won’t block mounting points.

Step 5: Account for screen requirements. Self-closing insect screens add 3″-4″ to your interior depth requirements. Ensure you have enough interior wall space for the screen housing to mount properly.

Common Measuring Mistakes

I’ve seen these errors cost operators $200-$800 in return shipping and reordering fees:

Measuring interior opening instead of rough opening. The window frame needs clearance. Always add that 1/2″ buffer.

Forgetting wall insulation thickness. Uninsulated walls measure 1.5″ but add 1″ of insulation and you’re at 2.5″. Measure actual thickness after insulation is installed.

Not accounting for exterior siding. Some trucks have corrugated aluminum siding that extends past the wall surface. Your window needs to sit flush with the outermost surface.

Food Truck Window Material Options: Aluminum vs Stainless Steel

Aluminum dominates food truck windows for good reasons. Stainless steel looks premium but creates problems most operators don’t anticipate.

Aluminum advantages: Lightweight (saves fuel), rust-resistant, cheaper ($200-$400 less than steel), easier to work with during installation. Our aluminum frames look identical to when we installed them 6 years ago despite Chicago winters and daily cleaning.

Aluminum disadvantages: Can dent if you hit it hard enough (though I’ve never seen this happen during normal service), slightly less secure for high-crime areas (bolt cutters can cut aluminum, but they can also cut most window locks regardless of material).

Stainless steel advantages: Premium appearance, extremely durable, better security in urban environments. One operator in downtown Chicago runs full stainless frames because of three break-in attempts in his first year. Stainless stopped them.

Stainless steel disadvantages: Heavy (adds 40-60 lbs to truck weight), costs $600-$1,000 more, requires specialized tools for installation, some grades rust anyway if you cheap out (300-series stainless is required—201/202 grades will rust in food service environments).

My Recommendation

Unless you operate in a high-crime area or need the premium aesthetic for upscale catering, choose aluminum. The weight savings matter more than most operators realize—every 100 lbs you save on equipment equals better fuel economy and easier towing.

If security concerns you, invest in a good lock system and alarm rather than upgrading to stainless steel. Better locks on aluminum frames work better than standard locks on steel frames.

Health Code Requirements for Food Truck Windows

Health codes vary by state but most follow similar baseline requirements. I’ve walked through inspections in Illinois, and helped friends prep trucks in Texas and Oregon—these requirements appeared everywhere.

Self-closing insect screens are required in most states. Self-closing means the screen automatically closes when released. Self-storing screens that you manually open and close fail inspection in California, Illinois, and about a dozen other states.

The difference matters. Self-closing screens cost $100-$200 more but they’re non-negotiable in states with strict codes. Check your local health department regulations before ordering.

Screen mesh size must meet minimum standards. Most codes require 16-mesh (16 openings per inch) or finer to prevent insect entry. Larger mesh fails inspection. Standard window screens from hardware stores often use 18-mesh or 20-mesh, which passes.

Windows must seal completely when closed. Gaps around closed windows that exceed 1/8″ fail inspection. Weather stripping that compresses when the window closes creates a proper seal. Test this before your inspection by closing the window and checking for light gaps.

Glass must be safety glass (tempered or laminated). Regular annealed glass is prohibited in food service applications. If it breaks, you need shatter-resistant glass that breaks into small granules instead of sharp shards. All commercial food truck windows use tempered glass by default.

Window operation must be one-handed from inside. This is less common but appears in California’s retail food code and a few other states. The operator must be able to open the window with one hand while holding food with the other. Heavy windows requiring two-handed operation fail this requirement.

Local Variations to Check

California has the strictest requirements—check the California Retail Food Code if you operate there. Texas is more lenient but requires specific licensing for window installation. Florida adds hurricane-resistant specifications in coastal counties.

Call your local health department and ask specifically about: screen requirements, seal tolerances, and any special certifications the window needs. Do this before ordering. I’ve seen two operators eat $1,200 in restocking fees because their windows didn’t meet local codes they didn’t know existed.

Step-by-Step Food Truck Window Installation Guide

I’ve installed eight windows in various trucks. This process works if you have basic tools and mechanical ability. Complex installations (awning windows, bi-parting systems) need professional installation.

Tools Required

• Jigsaw with metal cutting blade
• Drill with metal bits (1/8″, 1/4″)
• Measuring tape
• Level (24″ minimum)
• Caulking gun
• Clamps (4-6 bar clamps)
• Safety glasses
• Metal file or deburring tool

Step 1: Mark Your Opening

Use the measurements from earlier. Mark the rough opening on your truck’s exterior wall. Double-check everything is level and at the right height. I mark all four corners, then use a straightedge to connect them. Measure diagonals—if they’re equal, your rectangle is square.

Step 2: Drill Corner Holes

Drill 1/2″ holes at all four corners, inside your marked lines. These give your jigsaw blade a starting point. Drill from outside to inside to avoid interior panel splintering.

Step 3: Cut the Opening

Cut along your marked lines with the jigsaw. Go slow on the corners. Metal cutting creates heat—let the blade cool if it’s smoking. Cut from outside so any rough edges end up on the interior where they’ll be covered by the window frame.

Remove the cutout panel. File all edges smooth. Any sharp edges will cut you during installation and damage weather stripping.

Step 4: Test Fit the Window

Set your window in the opening before applying any sealant. It should fit with 1/4″ clearance on all sides. Too tight means you need to enlarge the opening slightly. Too loose (over 1/2″ gap) means you need larger trim pieces.

Check that the window sits flush with your truck’s exterior. If it sticks out or sinks in, your wall thickness measurement was wrong. Some windows have adjustable mounting flanges to compensate for this.

Step 5: Apply Sealant

Remove the window. Apply a continuous bead of butyl rubber sealant or polyurethane construction adhesive along the rough opening edge. This creates a weatherproof seal. I use Dicor butyl tape because it’s cleaner than liquid sealants.

Step 6: Mount the Window

Set the window back in the opening, pressing firmly into the sealant. Clamp it in place. From inside the truck, drill pilot holes through the window mounting flanges into your truck wall. Don’t skip the pilot holes—forcing screws through aluminum without pilots will crack the flange.

Install stainless steel screws through all mounting holes. Tighten gradually in a cross pattern (like lug nuts on a tire) to prevent warping. Don’t overtighten—you’ll crack the flange or strip the aluminum.

Step 7: Seal Exterior Gaps

From outside, apply another bead of sealant around the entire window perimeter where the frame meets the truck wall. Smooth it with a wet finger. This is your weather protection.

Step 8: Install Interior Trim

Most windows include interior trim pieces that cover the rough opening edges. These screw or clip into place on the interior side. Install these last.

Step 9: Test Operation

Open and close the window 10-20 times. It should glide smoothly. If it sticks, check for debris in the tracks or verify the frame isn’t warped from overtightening screws.

Common Installation Mistakes

Cutting opening too large. You can’t shrink it. Go slow, test fit often, trim gradually if needed.

Not leveling the frame. A window that’s off by even 2 degrees won’t slide properly because gravity pulls the panel to one side.

Using the wrong sealant. Silicone doesn’t stick to aluminum long-term. Use butyl rubber tape or polyurethane-based sealants rated for metal-to-metal applications.

Installing in cold weather. Sealants don’t cure properly below 40°F. Your window will leak. Install in spring/summer or heat your truck interior during curing time.

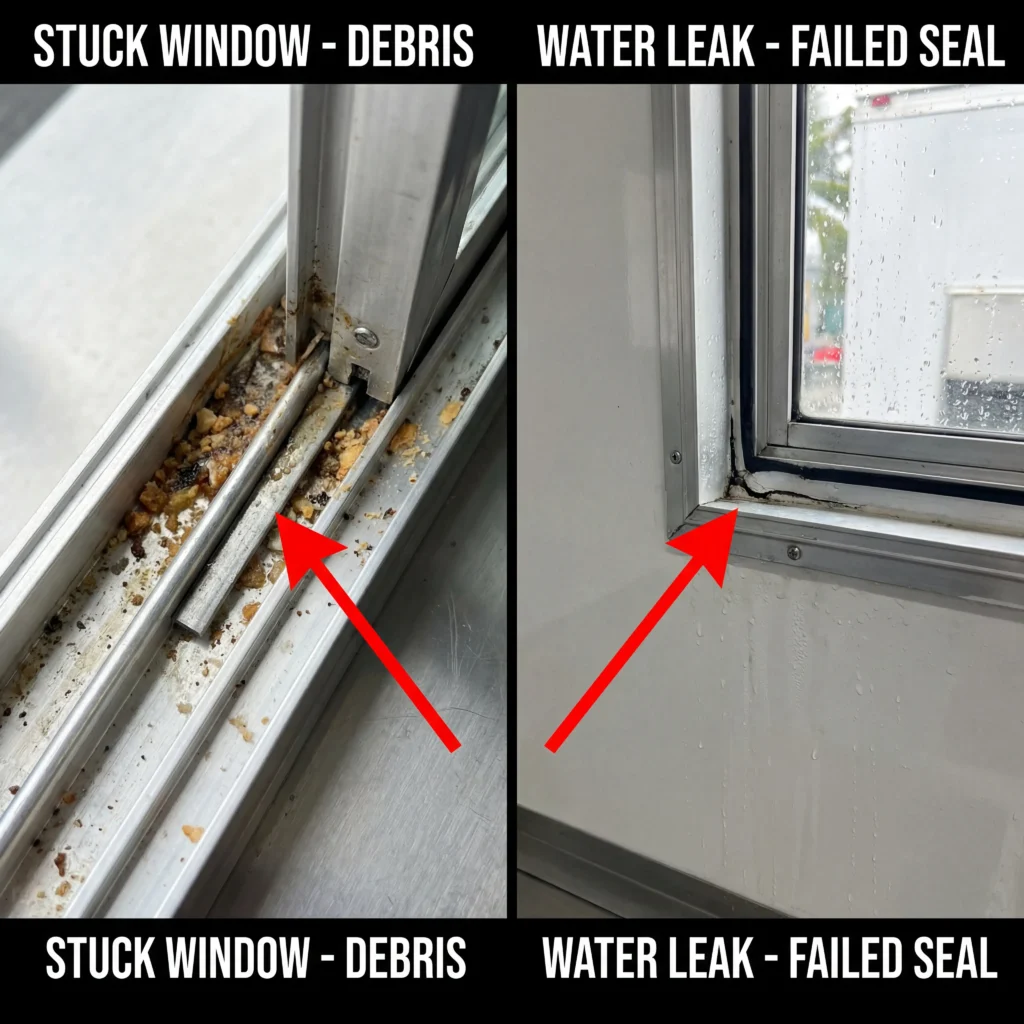

Common Food Truck Window Problems (and Fixes)

Eight years running trucks means I’ve dealt with every window failure mode. Here are the issues that actually happen and how to fix them.

Problem 1: Window Won’t Slide Smoothly

Cause: Debris in tracks, bent slider bar, or dried lubricant.

Fix: Clean tracks completely with degreaser. Lubricate slider bars with silicone spray (not WD-40, which attracts dirt). If the slider bar is bent, replacement bars cost $30-$50 and install in 10 minutes.

We clean our window tracks every Sunday. Grease and food particles build up during the week, especially if you’re serving fried foods. Skipping this made our window stick after 3 months of operation.

Problem 2: Water Leaks Around Frame

Cause: Failed sealant, improperly tightened screws, or wall flexing during travel.

Fix: Remove old sealant completely, clean surfaces with rubbing alcohol, reapply fresh butyl tape or polyurethane sealant. Check mounting screws haven’t loosened from road vibration.

One leak I fixed came from screws that had backed out 1/4 turn from driving on rough roads. Tighten exterior mounting screws every 3-4 months.

Problem 3: Self-Closing Screen Stays Open

Cause: Worn springs, obstruction in track, or hinge corrosion.

Fix: Most self-closing screens use tension springs mounted in the frame. Replacement spring kits cost $15-$25. Installation requires removing the screen frame, replacing springs, and reassembling. Takes 30 minutes.

Problem 4: Glass Panel Cracked

Cause: Road vibration, impact, or stress from improperly tightened frame.

Fix: Glass replacement is usually a professional job unless you have glazing experience. Replacement panels cost $80-$200 depending on size. Most manufacturers sell replacement glass with frame gaskets included.

Never operate with cracked glass—it fails health inspection and creates injury risk if it shatters during service.

Problem 5: Awning Won’t Stay Open

Cause: Failed gas struts or hydraulic arms.

Fix: Gas struts lose pressure over time (2-4 years typical lifespan). Replacement struts cost $40-$80 per pair. They install with simple pins—no welding or complex tools needed. Always replace both struts at once even if only one failed.

Top Food Truck Window Manufacturers Compared

I’ve installed or worked on windows from six major manufacturers. Here’s what differentiates them based on hands-on experience, not marketing claims.

RecPro (Recreational Products)

Strengths: Wide size selection, same-day shipping on stock windows, competitive pricing ($500-$1,200 range), good customer service.

Weaknesses: Some models use lighter-gauge aluminum that dents easier, fewer customization options.

Best for: Operators wanting standard sizes with fast delivery.

J&R Aluminum Products

Strengths: Made in USA (Ohio), heavy-duty construction, excellent custom capabilities, long track record (been manufacturing since 1970s).

Weaknesses: Lead times run 6-10 weeks for custom orders, premium pricing ($800-$2,000).

Best for: Custom builds, operators prioritizing quality over price.

Ready Access

Strengths: Focus on health-code compliant designs, good technical documentation, reliable operating systems (many windows rated 750,000+ cycles).

Weaknesses: Limited size options compared to RecPro, primarily serves commercial/industrial market so food truck support is less specialized.

Best for: Operators in strict-code states (California, Illinois).

VEVOR/Garvee (Chinese Manufacturers)

Strengths: Lowest prices ($300-$800), decent quality for the money, fast Amazon shipping.

Weaknesses: Quality inconsistency between batches, thinner aluminum frames, shorter lifespan (3-5 years vs 8-10+ for domestic brands), limited warranty support.

Best for: Budget-conscious startups, temporary/seasonal operations.

My Recommendation

If budget allows, buy from J&R or RecPro. The $200-$400 premium over Chinese brands pays back in longevity and avoided replacement costs. I’ve seen $400 VEVOR windows fail after 2 years while $800 J&R windows run strong after 6+ years.

For custom sizes or unusual configurations, J&R handles this better than anyone. For standard sizes with quick turnaround, RecPro ships fast and stands behind their products.

Avoid ultra-cheap eBay/Amazon windows from unknown brands. The $150 savings disappears fast when you’re replacing failed components or dealing with warranty issues from a manufacturer who doesn’t respond to emails.

Food Truck Window Cost Breakdown by Size

Prices vary by features, brand, and customization. This reflects 2024-2025 market pricing based on quotes I’ve collected helping other operators.

Standard Sizes (Stock Windows)

What Affects Price

Size increases cost proportionally. A 60″ window costs roughly double a 30″ window because it uses twice the aluminum and glass.

Awning mechanisms add $150-$300. The gas struts, mounting hardware, and engineering for overhead windows cost more than simple sliders.

Self-closing screens add $100-$200. The spring mechanisms and specialized tracks cost more than basic self-storing screens.

Custom sizing adds 20-40%. Anything outside stock dimensions requires custom fabrication. Our 53″×33″ window on the second truck cost $1,450 vs $950 for a stock 48″×36″ with similar features.

Stainless steel frames add $400-$800. The material costs more and requires specialized welding.

Hidden Costs to Budget

Don’t forget installation ($200-$500 if you hire a professional), shipping ($50-$150 depending on size and distance), and tools if you don’t own them already ($150-$200 for jigsaw, drill, and accessories).

Total project cost for DIY window installation runs 25-35% higher than the window’s purchase price. Professional installation pushes total cost 50-75% higher.

FAQ: Food Truck Window Questions Answered

What size food truck window do I need?

Match window size to your service style. Coffee/small items work with 24″×24″ to 36″×24″. Full-service operations need 36″×36″ minimum, with 48″×36″ being most common. I run 48″×36″ because we serve full plates of BBQ. Smaller windows slow service during rushes.

Can I install a food truck window myself?

Yes, if you have basic metal-working ability and the right tools. Horizontal slider windows are easiest. Awning and bi-parting windows need more skill. Budget 4-6 hours for a basic installation, longer if it’s your first time.

Do all food truck windows need self-closing screens?

Not everywhere, but most states require them. California, Illinois, New York, and Texas health codes specifically mandate self-closing insect screens. States without specific requirements still prefer them during inspections. Verify your local code, but plan for self-closing screens unless you have written confirmation they’re not required.

How long do food truck windows last?

Quality windows last 8-12 years with proper maintenance. Budget models fail after 3-5 years. The slider mechanism wears first—expect to replace roller bars and springs around the 4-6 year mark regardless of quality. Our 6-year-old J&R windows still operate smoothly because we maintain them properly.

Can I add a window to an existing food truck?

Yes. Cutting an opening in an existing truck follows the same installation process. The challenge is finding interior wall space without plumbing, electrical, or structural interference. Most trucks have 2-3 viable window locations maximum. Adding windows to finished trucks costs more because you’re working around existing systems.

What’s the difference between concession windows and food truck windows?

Same thing, different names. “Concession window” is used for stationary concession stands and trailers. “Food truck window” is used for mobile vehicles. The products are identical—manufacturers use both terms interchangeably. Some companies call them “serving windows” to cover both markets.

Do food truck windows come with warranties?

Most manufacturers offer 1-3 year warranties on materials and workmanship. J&R provides 3 years, RecPro offers 1 year, Chinese brands vary (30 days to 1 year). Warranties don’t cover wear items (screens, seals, slider bars) or damage from improper installation.

Final Recommendations

The food truck window you choose affects your operation for 5-10 years. Here’s what matters most based on actually using these windows daily.

Prioritize smooth operation over appearance. A $700 window that slides easily serves more customers than a $1,200 window that looks premium but sticks during service. Test operation before buying if possible.

Buy the right size the first time. Resizing window openings in your truck costs $500-$1,000 in labor and materials. Measure carefully, account for your service style, and don’t undersize trying to save money.

Verify health code requirements before ordering. The $100 you save buying self-storing screens instead of self-closing screens turns into a $1,000 mistake when you fail inspection and need to reorder. Call your health department, get requirements in writing, then order.

Budget for installation tools or professional help. Cutting metal with the wrong tools creates dangerous sharp edges and improper fits. If you’re not confident doing this work, hire someone experienced with food truck modifications.

Plan maintenance from day one. Our windows survive 6+ years because we clean tracks weekly and replace worn parts immediately. Operators who ignore maintenance replace entire windows after 3-4 years.

I’ve fixed enough cheap window installations to know the patterns. The operators who measure carefully, verify codes, buy quality components, and maintain them properly get 10+ years from their windows. The operators who cheap out and skip steps replace windows every 3-4 years, losing money and customers to equipment failures.

Choose wisely. Your window is the primary customer interface—make it count.
